LONGi Hi-MO X10 Explorer – 635–650 W

The LONGi Hi-MO X10 Explorer is a 144-cell module from 635 to 650 W. Best suited to: commercial roofs and distributed generation.Back-contact cells on N-type TaiRay wafers for…

LONGi Hi-MO X10 Explorer – 635–650 W

Back-contact · up to 24.1% efficiency

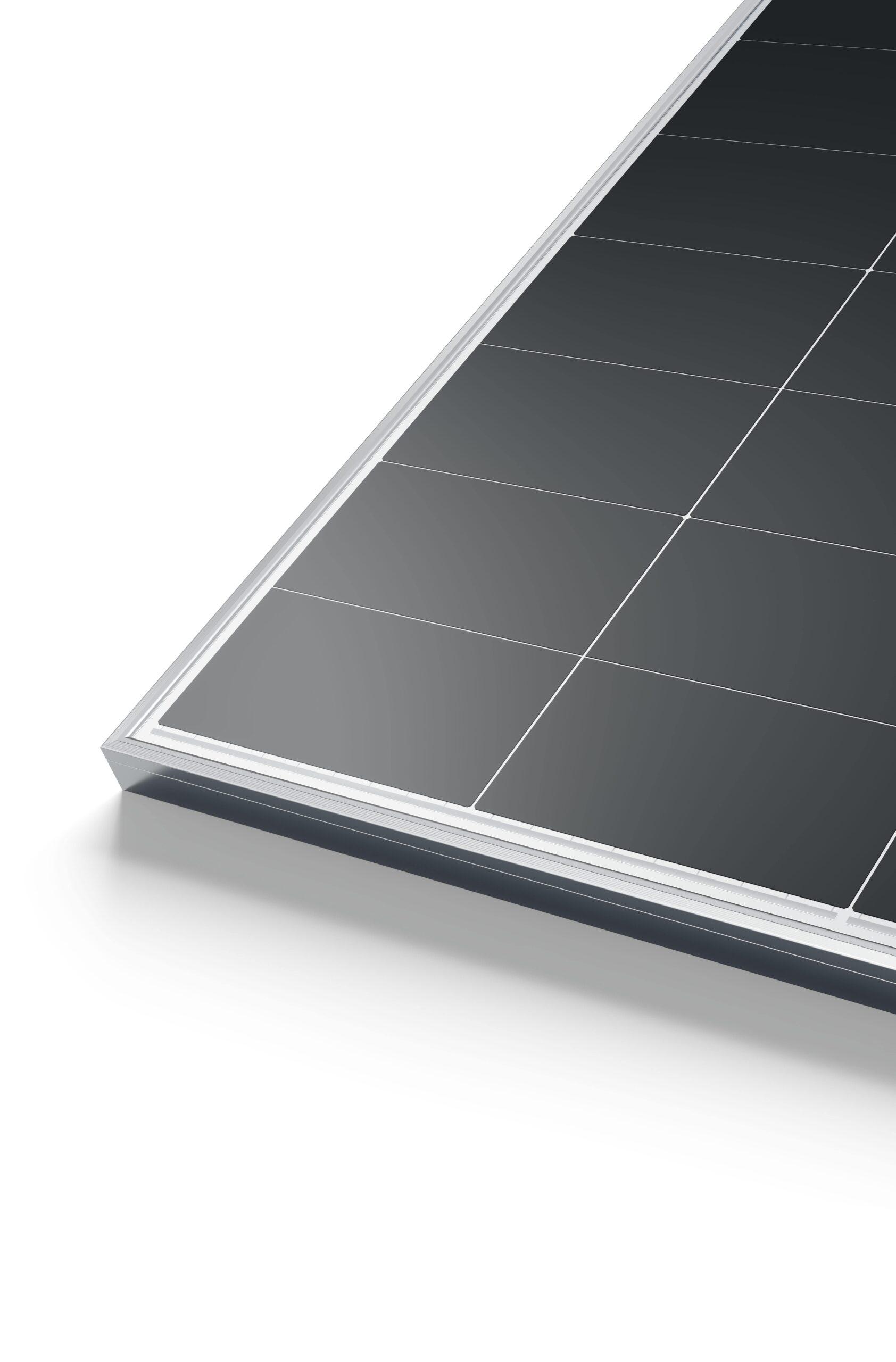

The LONGi Hi-MO X10 Explorer is a 144-cell module from 635 to 650 W. Best suited to: commercial roofs and distributed generation.

  • Back-contact cells on N-type TaiRay wafers for strong output and long-term reliability
  • Same 2382 × 1134 mm format as the Scientist, at a lower power class
  • 30-year linear power warranty

All figures on this page come from the manufacturer’s datasheet (issued 31 Dec 2024, marked draft by LONGi). Download it below, or ask us to check compatibility with your inverter and roof before you order.

Specifications

BrandLONGi
SeriesHi-MO X10 Explorer
ModelLR7-72HVH-635~650M
Power classes635 / 640 / 645 / 650 W
Module efficiency23.5–24.1%
Cell technologyHPBC 2.0 back-contact (BC) · N-type
Cells144 half-cells (6×24)
Open-circuit voltage (Voc) · 650 W53.90 V
Short-circuit current (Isc) · 650 W15.29 A
Voltage at max power (Vmp) · 650 W44.56 V
Current at max power (Imp) · 650 W14.59 A
Power tolerance0 to +3%
Temperature coefficient · Pmax-0.260%/°C
Temperature coefficient · Voc-0.200%/°C
Temperature coefficient · Isc+0.050%/°C
Maximum system voltageDC1500V (IEC)
Maximum series fuse rating25A
Operating temperature-40°C to +85°C Front Side Maximum Static Loading 5400Pa
Rear static load2400Pa
Hail test25mm Hailstone at the speed of 23m/s
Fire ratingIEC Class C Temperature Coefficient of Pmax -0.260%/℃
Dimensions2382 × 1134 × 30 mm
Weight28.5 kg
GlassSingle glass · 3.2mm coated tempered glass
FrameAnodized aluminum alloy frame
Junction boxIP68,three diodes
Packaging36pcs per pallet / 144pcs per 20’
Product warranty15 years (materials and processing)
Power warranty30 years linear · 88.85% of nominal power in year 30
DegradationUnder 1% in year 1 · then 0.35% a year
CertificationsIEC 61215 · IEC 61730 · UL 61730
DatasheetDatasheet

Price on request. Request a quote
